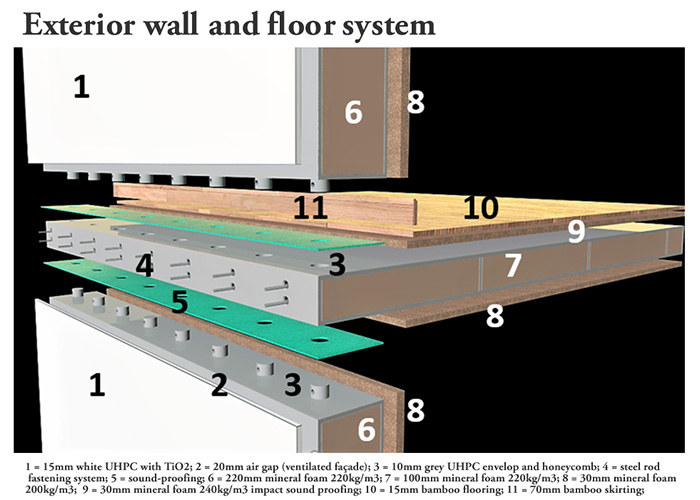

Exterior wall and floor system -
1 = 15mm white UHPC with TiO2; 2 = 20mm air gap (ventilated fa�ade); 3 = 10mm grey UHPC envelop and honeycomb; 4 = steel rod fastening system; 5 = sound-proofing; 6 = 220mm mineral foam 220kg/m3; 7 = 100mm mineral foam 220kg/m3; 8 = 30mm mineral foam 200kg/m3; 9 = 30mm mineral foam 240kg/m3 impact sound proofing; 10 = 15mm bamboo flooring; 11 = 70mm bamboo skirting;

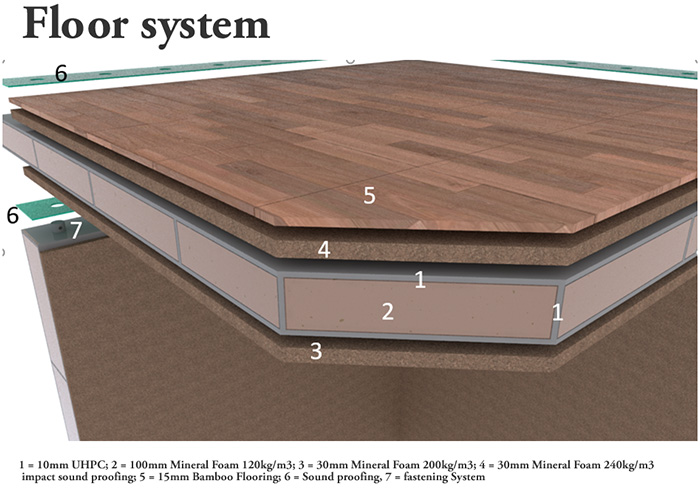

Floor system -
1 = 10mm UHPC; 2 = 100mm Mineral Foam 120kg/m3; 3 = 30mm Mineral Foam 200kg/m3; 4 = 30mm Mineral Foam 240kg/m3 impact sound proofing; 5 = 15mm Bamboo Flooring; 6 = Sound proofing, 7 = fastening System

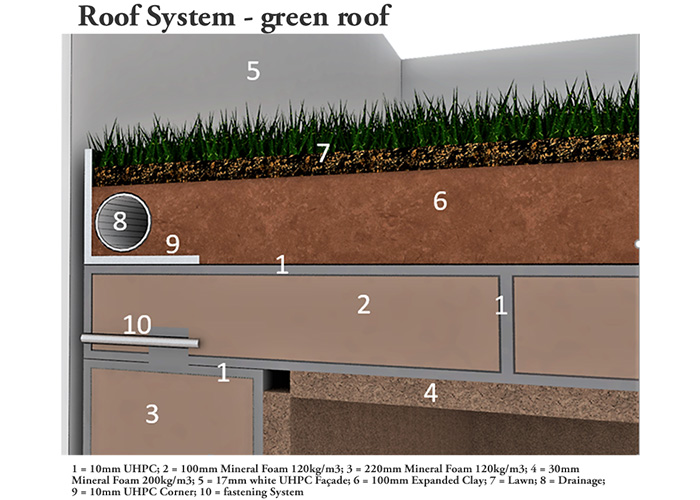

Roof System - green roof
1 = 10mm UHPC; 2 = 100mm Mineral Foam 120kg/m3; 3 = 220mm Mineral Foam 120kg/m3; 4 = 30mm Mineral Foam 200kg/m3; 5 = 17mm white UHPC Fa�ade; 6 = 100mm Expanded Clay; 7 = Lawn; 8 = Drainage; 9 = 10mm UHPC Corner; 10 = fastening System

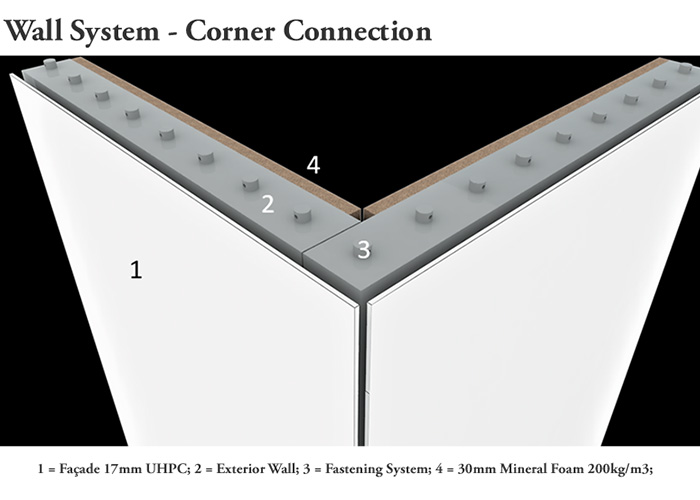

Wall System – Corner Connection
1 = Façade 17mm UHPC; 2 = Exterior Wall; 3 = Fastening System; 4 = 30mm Mineral Foam 200kg/m3;

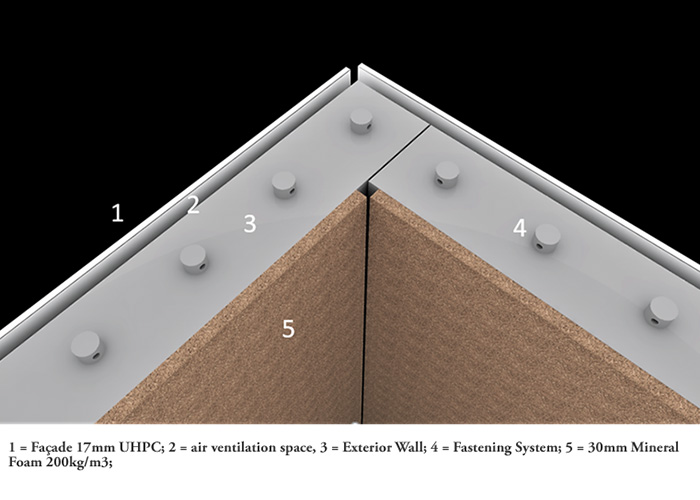

1 = Façade 17mm UHPC; 2 = air ventilation space, 3 = Exterior Wall; 4 = Fastening System; 5 = 30mm Mineral Foam 200kg/m3;

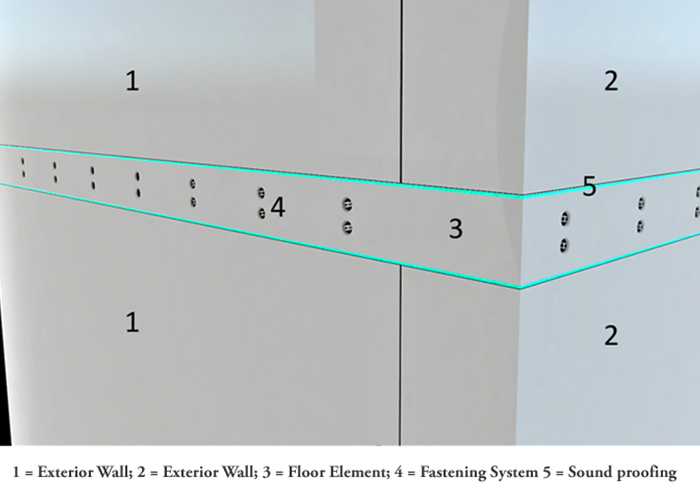

1 = Exterior Wall; 2 = Exterior Wall; 3 = Floor Element; 4 = Fastening System 5 = Sound proofing

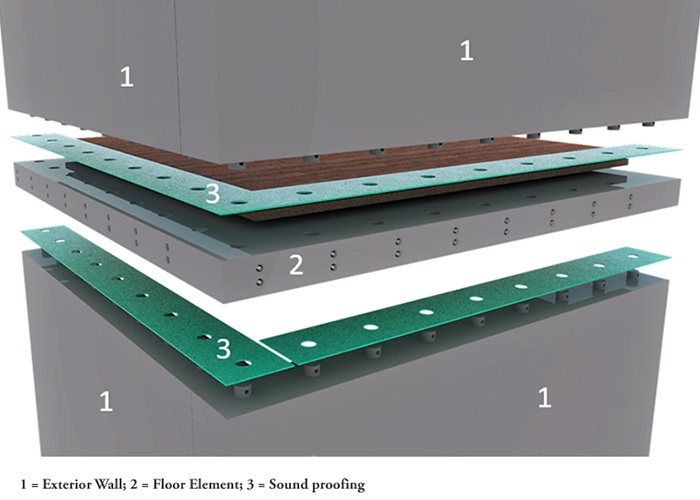

Interior wall
1 = Exterior Wall; 2 = Floor Element; 3 = Sound proofing
